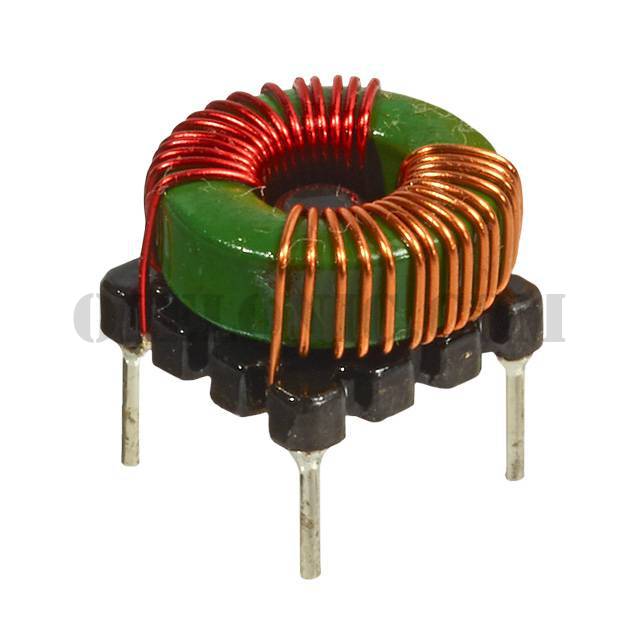

TCK-076


TCK-076

Part NumberTCK-076

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

TCK-076 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package10
ManufacturerTraco Power
Series-
Part StatusActive
Filter Type-
Number of Lines2
Inductance @ Frequency55µH @ 100kHz
Current Rating (Max)5.7A
DC Resistance (DCR) (Max)8.5mOhm
Voltage Rating - DC500V
Voltage Rating - AC-
Operating Temperature-40°C ~ 105°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension0.433" L x 0.433" W (11.00mm x 11.00mm)
Height (Max)0.346" (8.80mm)
Package / CaseHorizontal, 4 PC Pin
