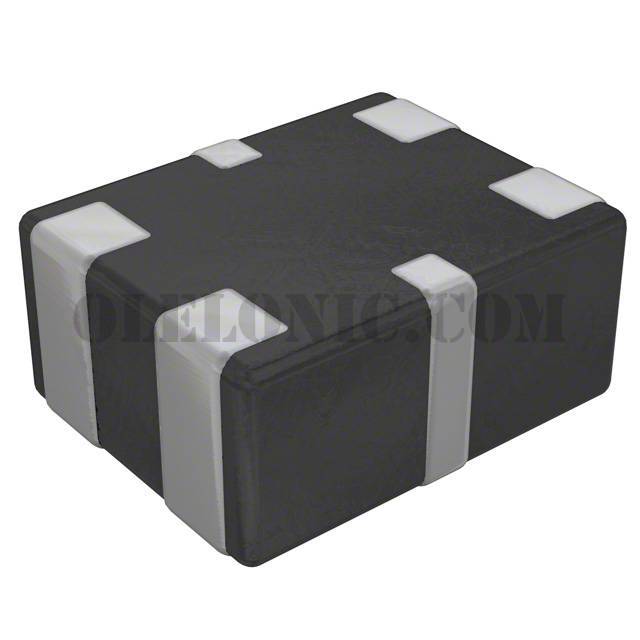

TCE1210U-120-2P

Part NumberTCE1210U-120-2P

ManufacturerTDK Corporation

DescriptionCMC 100MA 2LN 12 OHM SMD ESD

DatasheetTCE Series

Package / Case0504 (1210 Metric), 6 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 12 Ohms @ 100MHz 100mA DCR 700mOhm

To learn about the specification of TCE1210U-120-2P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TCE1210U-120-2P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TCE1210U-120-2P.
We are offering TCE1210U-120-2P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TCE1210U-120-2P - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

TCE Series

Standard Package

4000

Manufacturer

TDK Corporation

Series

TCE

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Filter Type

Signal Line

Number of Lines

Impedance @ Frequency

12 Ohms @ 100MHz

Current Rating (Max)

100mA

DC Resistance (DCR) (Max)

700mOhm

Voltage Rating - DC

10V

Voltage Rating - AC

Operating Temperature

-25°C ~ 85°C

Ratings

Approvals

Features

ESD

Mounting Type

Surface Mount

Size / Dimension

0.049" L x 0.039" W (1.25mm x 1.00mm)

Height (Max)

0.024" (0.60mm)

Package / Case

0504 (1210 Metric), 6 Lead
