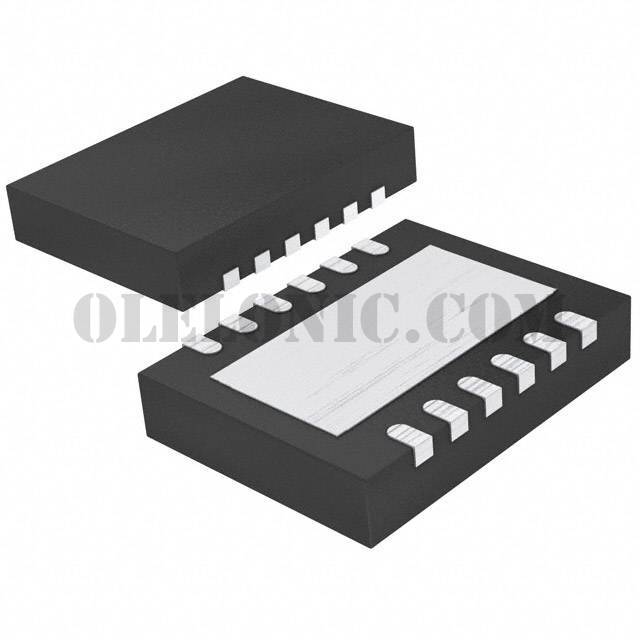

TC8220K6-G


TC8220K6-G

Part NumberTC8220K6-G

Manufacturer

Description

Datasheet

Package / Case12-VFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

TC8220K6-G - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package1
ManufacturerMicrochip Technology
Series-
PackagingCut Tape (CT)
Part StatusActive
FET Type2 N and 2 P-Channel
FET FeatureStandard
Drain to Source Voltage (Vdss)200V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs6Ohm @ 1A, 10V
Vgs(th) (Max) @ Id2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds56pF @ 25V
Power - Max-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case12-VFDFN Exposed Pad
Supplier Device Package12-DFN (4x4)
