Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	TBS20A thru TBS20M
Standard Package	3000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 2A
Current - Reverse Leakage @ Vr	5µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

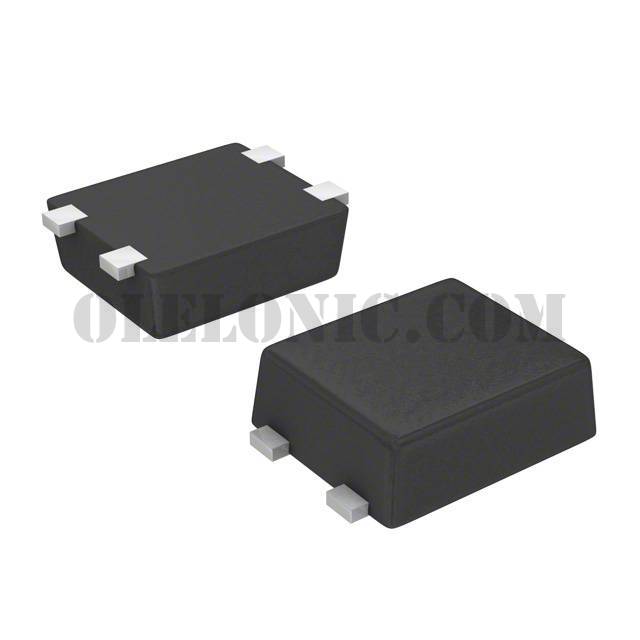

Package / Case	4-SMD, Flat Leads
Supplier Device Package	4-TBS

DF04S2	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SDIP,	View
YBS2204G RAG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 400V Surface Mount YBS,	View
CDTO269-BR1380L	Bourns Inc., Bridge Rectifier Single Phase Standard 380V Surface Mount TO-269AA,	View
MB16S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Schottky 60V Surface Mount MBS-1,	View
SDB157L-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount SDBL-1,	View
MB2S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 200V Surface Mount MBS-1,	View
DBLS209G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1.4kV Surface Mount DBLS,	View
CBRHDSH2-100 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 100V Surface Mount 4-HD DIP,	View
SDB104-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 400V Surface Mount SDB-1,	View
DF08S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 800V Surface Mount DF-S,	View
DF210ST-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
ABS10TR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS,	View

TBS20M-TP

Part NumberTBS20M-TP
