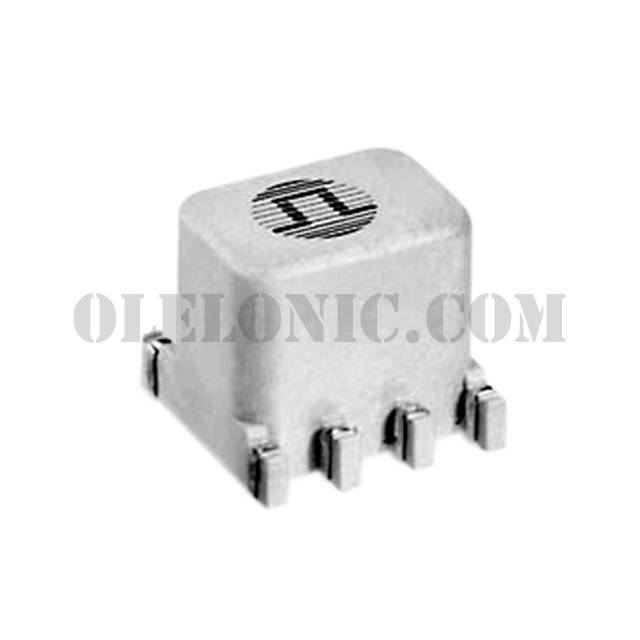

T8005NLT

Part NumberT8005NLT

ManufacturerPulse Electronics Network

DescriptionCOMMON MODE CHOKE 4.7MH 4LN SMD

DatasheetT8005, T8006 Datasheet

Package / CaseVertical, 8 Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4.7mH @ 100kHz 4 Line Common Mode Choke Surface Mount DCR 1.4Ohm

To learn about the specification of T8005NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add T8005NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of T8005NLT.
We are offering T8005NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

T8005NLT - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

T8005, T8006 Datasheet

Standard Package

400

Manufacturer

Pulse Electronics Network

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Filter Type

Signal Line

Number of Lines

Inductance @ Frequency

4.7mH @ 100kHz

Current Rating (Max)

DC Resistance (DCR) (Max)

1.4Ohm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-40°C ~ 85°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.360" L x 0.340" W (9.14mm x 8.64mm)

Height (Max)

0.310" (7.87mm)

Package / Case

Vertical, 8 Flat Lead
