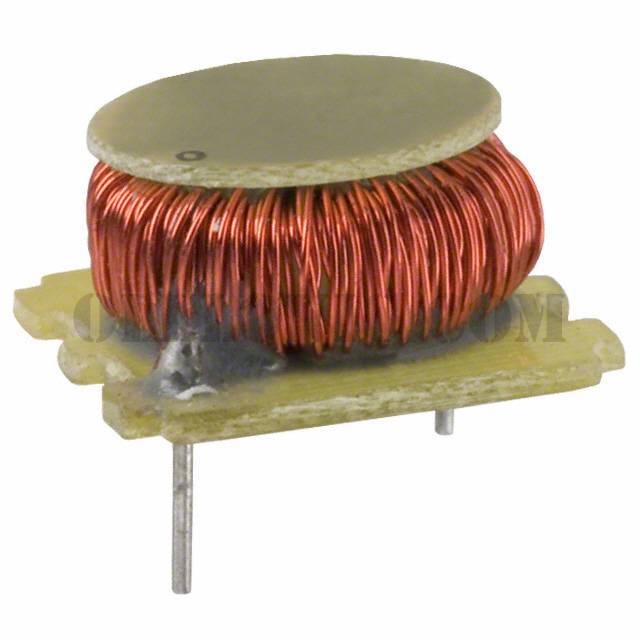

SWT-1.20-38

Part NumberSWT-1.20-38

ManufacturerAmgis, LLC

DescriptionFIXED IND 38UH 1.2A 100 MOHM TH

DatasheetSW Series 150kHz

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description38µH Unshielded Toroidal Inductor 1.2A 100mOhm Radial, Horizontal (Open)

To learn about the specification of SWT-1.20-38, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SWT-1.20-38 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SWT-1.20-38.
We are offering SWT-1.20-38 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SWT-1.20-38 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SW Series 150kHz

Standard Package

200

Manufacturer

Amgis, LLC

Series

Packaging

Bulk

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

38µH

Tolerance

±20%

Current Rating (Amps)

1.2A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

100mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal (Open)

Supplier Device Package

Size / Dimension

0.504" L x 0.504" W (12.80mm x 12.80mm)

Height - Seated (Max)

0.307" (7.80mm)
