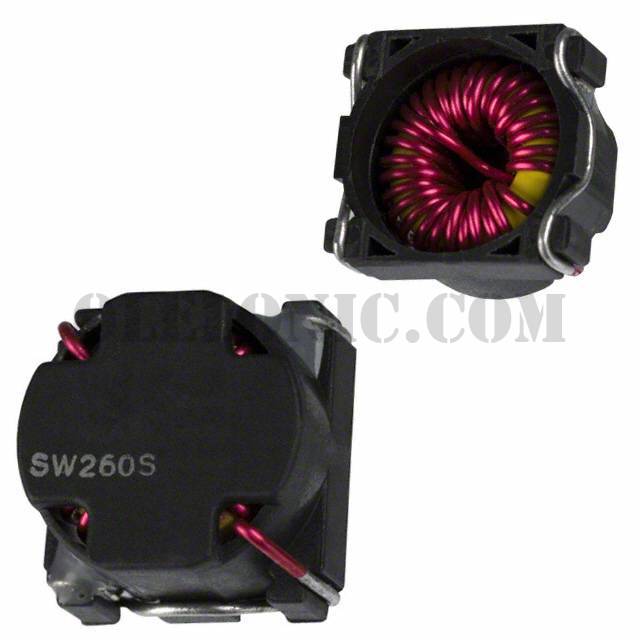

SWS-5.0-15

Part NumberSWS-5.0-15

ManufacturerAmgis, LLC

DescriptionFIXED IND 15UH 5A 27 MOHM SMD

DatasheetSW260 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description15µH Unshielded Toroidal Inductor 5A 27mOhm Nonstandard

To learn about the specification of SWS-5.0-15, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SWS-5.0-15 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SWS-5.0-15.
We are offering SWS-5.0-15 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SWS-5.0-15 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SW260 Series

Standard Package

250

Manufacturer

Amgis, LLC

Series

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

15µH

Tolerance

±20%

Current Rating (Amps)

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

27mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Inductance Frequency - Test

10kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.701" L x 0.669" W (17.80mm x 17.00mm)

Height - Seated (Max)

0.400" (10.16mm)
