SUM90N10-8M2P-E3

SUM90N10-8M2P-E3

Part NumberSUM90N10-8M2P-E3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 100V 90A D2PAK

DatasheetSUM90N10-8M2P

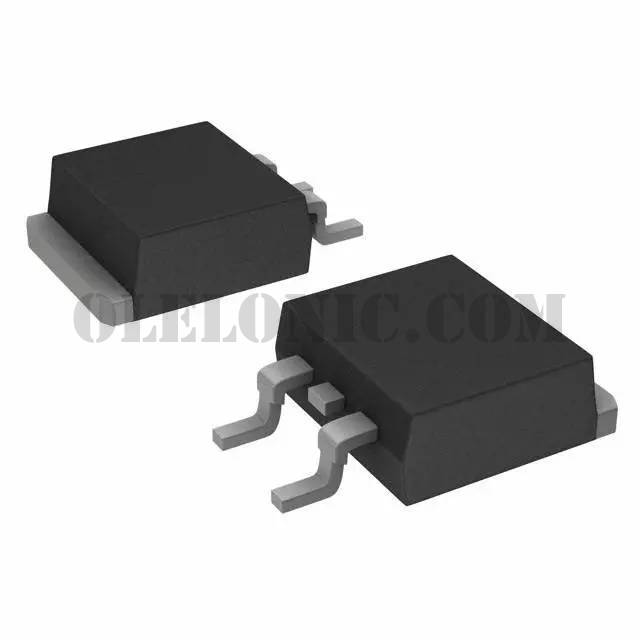

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 90A (Tc) 3.75W (Ta), 300W (Tc) Surface Mount TO-263 (D2Pak)

To learn about the specification of SUM90N10-8M2P-E3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SUM90N10-8M2P-E3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SUM90N10-8M2P-E3.
We are offering SUM90N10-8M2P-E3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SUM90N10-8M2P-E3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SUM90N10-8M2P
Standard Package	800
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	8.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	150nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6290pF @ 50V
FET Feature	-
Power Dissipation (Max)	3.75W (Ta), 300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263 (D2Pak)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
