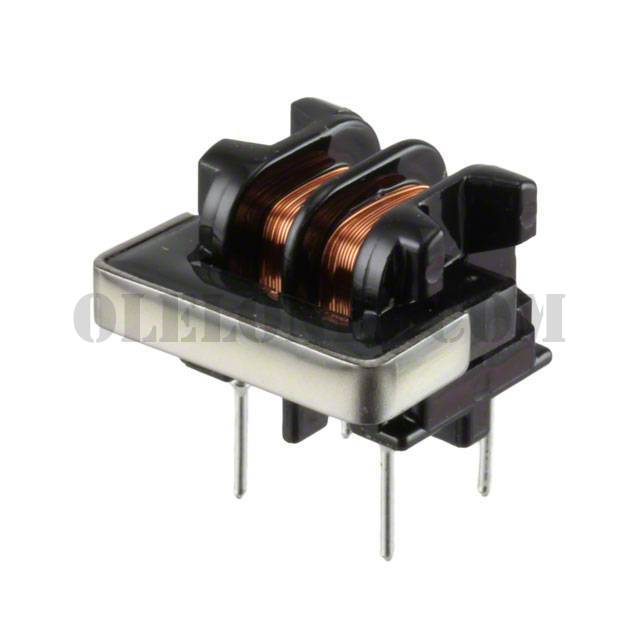

SU9H-R03090


SU9H-R03090

Part NumberSU9H-R03090

Manufacturer

Description

Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SU9H-R03090 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1000
ManufacturerKEMET
SeriesSU
PackagingBulk
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency9mH @ 1kHz
Current Rating (Max)300mA
DC Resistance (DCR) (Max)3Ohm
Voltage Rating - DC-
Voltage Rating - AC250V
Operating Temperature-25°C ~ 120°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max)0.492" (12.50mm)
Package / CaseVertical, 4 PC Pin
