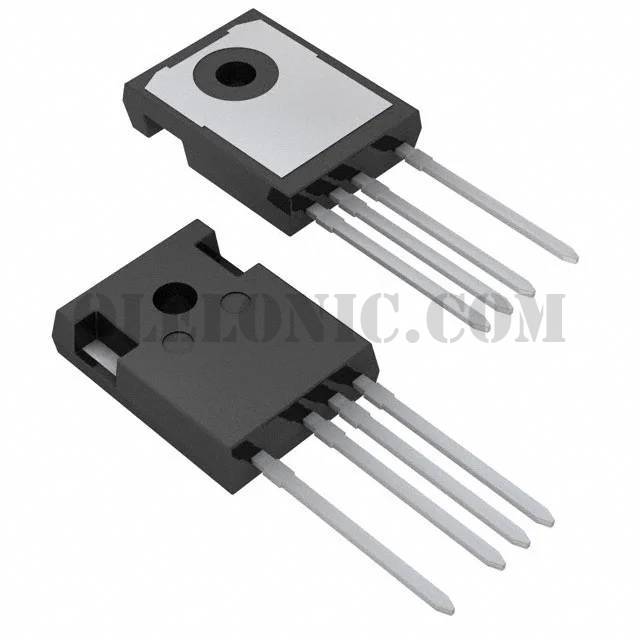

STW48N60M2-4

STW48N60M2-4

Part NumberSTW48N60M2-4

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 600V 42A TO247-4

DatasheetSTW48N60M2-4

Package / CaseTO-247-4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 42A (Tc) 300W (Tc) Through Hole TO-247-4L

To learn about the specification of STW48N60M2-4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STW48N60M2-4 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STW48N60M2-4.
We are offering STW48N60M2-4 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STW48N60M2-4 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STW48N60M2-4
Standard Package	30
Manufacturer	STMicroelectronics
Series	MDmesh™ M2
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	70mOhm @ 21A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	70nC @ 10V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	3060pF @ 100V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4L
Package / Case	TO-247-4
