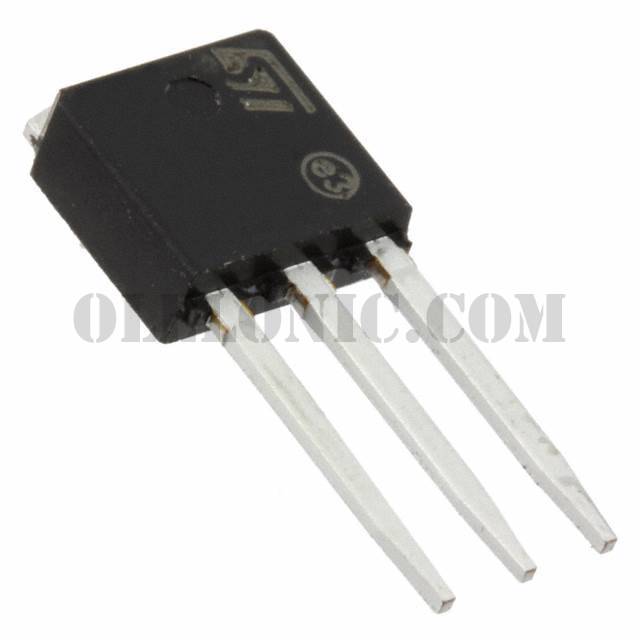

STU7N105K5

STU7N105K5

Part NumberSTU7N105K5

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 1050V 4A IPAK

DatasheetSTx7N105K5

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1050V 4A (Tc) 110W (Tc) Through Hole IPAK (TO-251)

To learn about the specification of STU7N105K5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STU7N105K5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STU7N105K5.
We are offering STU7N105K5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STU7N105K5 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STx7N105K5
Standard Package	75
Manufacturer	STMicroelectronics
Series	SuperMESH5™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1050V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	17nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	380pF @ 100V
FET Feature	-
Power Dissipation (Max)	110W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	IPAK (TO-251)
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
