Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	STTH802SFY Datasheet
Standard Package	6000
Manufacturer	STMicroelectronics
Series	Automotive, AEC-Q101, ECOPACK®2
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	8A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	35ns
Current - Reverse Leakage @ Vr	6µA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount

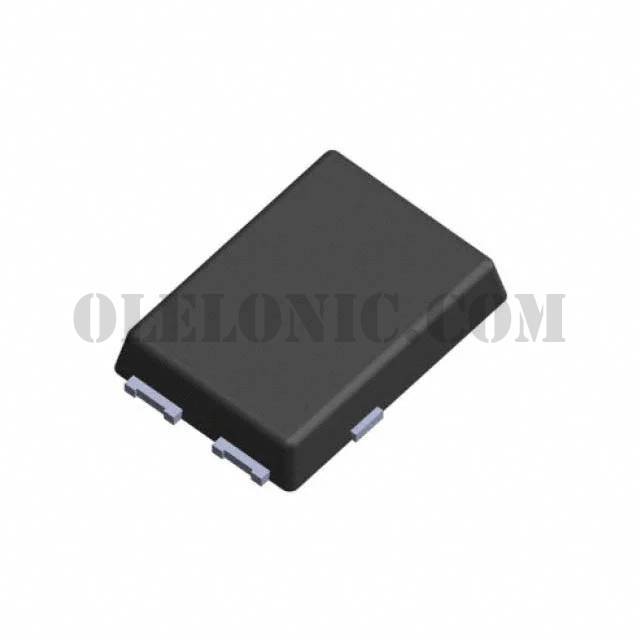

Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	TO-277A (SMPC)
Operating Temperature - Junction	-40°C ~ 175°C
