STTH506D

STTH506D

Part NumberSTTH506D

ManufacturerSTMicroelectronics

DescriptionDIODE GEN PURP 600V 5A TO220AC

DatasheetSTTH506

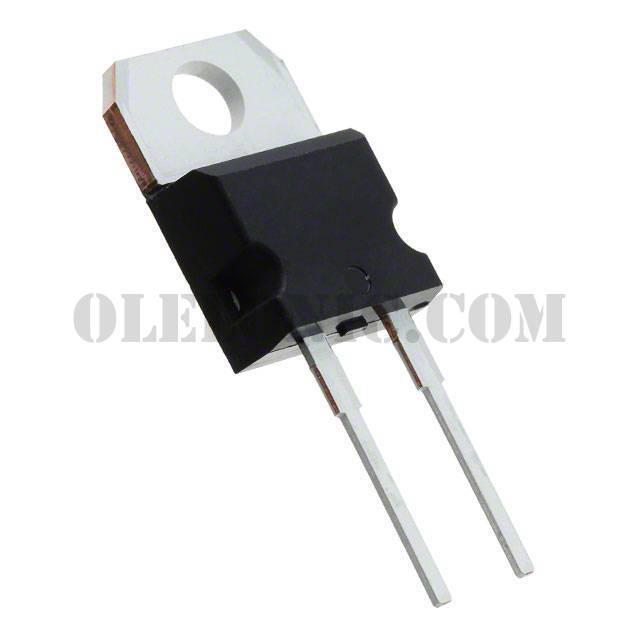

Package / CaseTO-220-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 600V 5A Through Hole TO-220AC

To learn about the specification of STTH506D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STTH506D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STTH506D.
We are offering STTH506D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STTH506D - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	STTH506
Standard Package	50
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	1.85V @ 5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	5µA @ 600V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	TO-220-2
Supplier Device Package	TO-220AC
Operating Temperature - Junction	175°C (Max)
Base Part Number	STTH506
