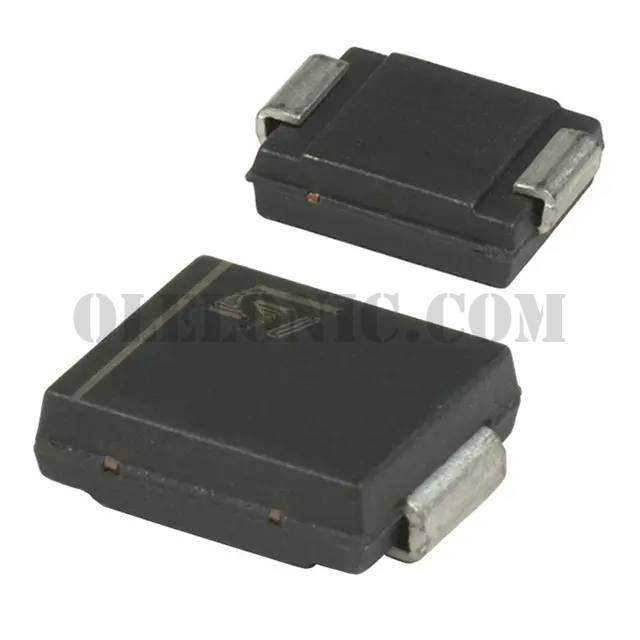

STTH302S


STTH302S

Part NumberSTTH302S

Manufacturer

Description

Datasheet

Package / CaseDO-214AB, SMC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

STTH302S - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package1
ManufacturerSTMicroelectronics
Series-
PackagingCut Tape (CT)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)200V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If950mV @ 3A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)35ns
Current - Reverse Leakage @ Vr3µA @ 200V
Capacitance @ Vr, F-
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageSMC
Operating Temperature - Junction175°C (Max)
Base Part NumberSTTH302
