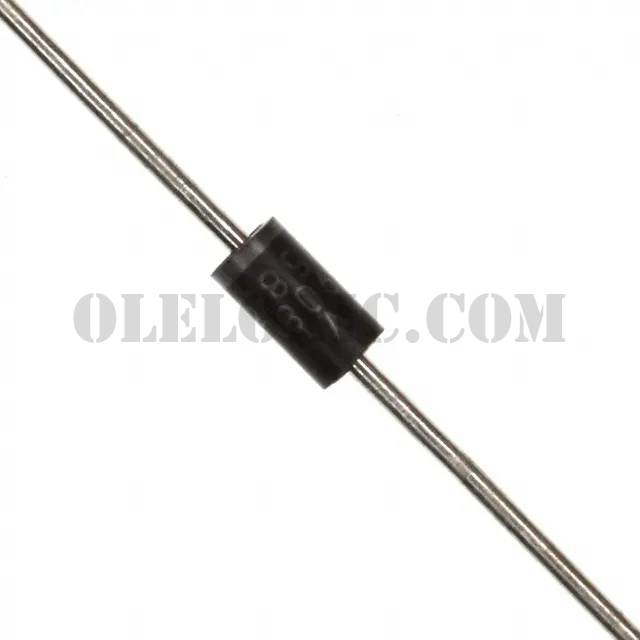

STTH1L06


STTH1L06

Part NumberSTTH1L06

Manufacturer

Description

Datasheet

Package / CaseDO-204AL, DO-41, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

STTH1L06 - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package2000
ManufacturerSTMicroelectronics
Series-
PackagingTape & Box (TB)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)600V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If1.3V @ 1A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)80ns
Current - Reverse Leakage @ Vr1µA @ 600V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseDO-204AL, DO-41, Axial
Supplier Device PackageDO-41
Operating Temperature - Junction175°C (Max)
Base Part NumberSTTH1L06
