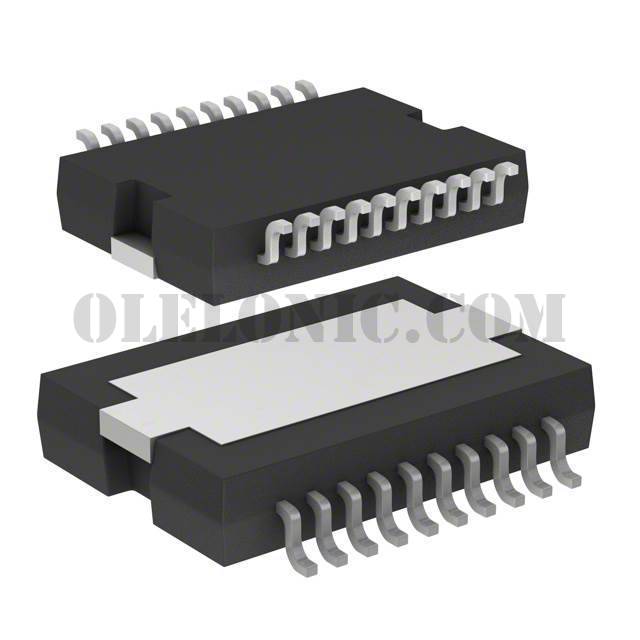

STPS30H60CKY-TR

Part NumberSTPS30H60CKY-TR

ManufacturerSTMicroelectronics

DescriptionDIODE ARRAY SCHOTTKY 60V POWERSO

DatasheetSTPS30H60C-Y

Package / Case20-SOIC (0.433", 11.00mm Width) Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 60V 15A Surface Mount 20-SOIC (0.433", 11.00mm Width) Exposed Pad

To learn about the specification of STPS30H60CKY-TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STPS30H60CKY-TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STPS30H60CKY-TR.
We are offering STPS30H60CKY-TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STPS30H60CKY-TR - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Arrays

Datasheet

STPS30H60C-Y

Standard Package

600

Manufacturer

STMicroelectronics

Series

Automotive, AEC-Q101

Packaging

Tape & Reel (TR)

Part Status

Active

Diode Configuration

1 Pair Common Cathode

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

60V

Current - Average Rectified (Io) (per Diode)

15A

Voltage - Forward (Vf) (Max) @ If

580mV @ 15A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

150µA @ 60V

Operating Temperature - Junction

-40°C ~ 150°C

Mounting Type

Surface Mount

Package / Case

20-SOIC (0.433", 11.00mm Width) Exposed Pad

Supplier Device Package

PowerSO-20

Base Part Number

STPS30H60C
