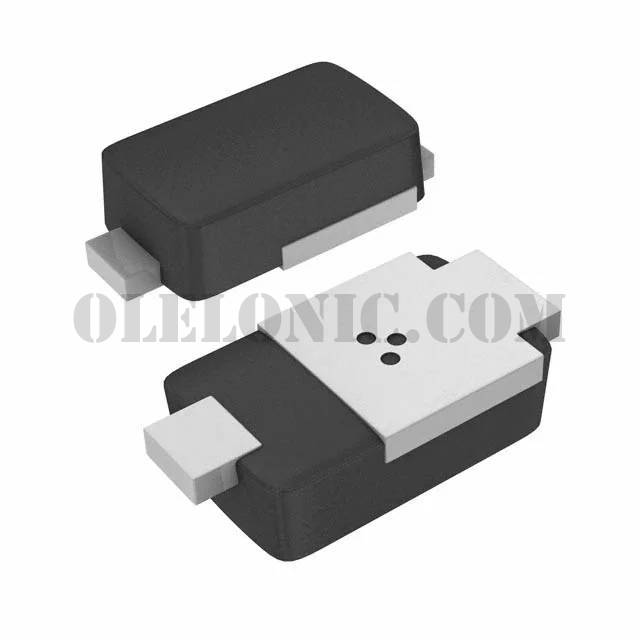

STPS1H100MF

STPS1H100MF

Part NumberSTPS1H100MF

ManufacturerSTMicroelectronics

DescriptionDIODE SCHOTTKY 100V 1A STMITEFLA

DatasheetSTPS1H100MF

Package / CaseDO-222AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 100V 1A Surface Mount STmite Flat

To learn about the specification of STPS1H100MF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STPS1H100MF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STPS1H100MF.
We are offering STPS1H100MF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STPS1H100MF - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	STPS1H100MF
Standard Package	12000
Manufacturer	STMicroelectronics
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	770mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	4µA @ 100V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	DO-222AA
Supplier Device Package	STmite Flat
Operating Temperature - Junction	175°C (Max)
Base Part Number	STPS1H100
