STL7NM60N

Part NumberSTL7NM60N

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 600V 5.8A POWERFLAT

DatasheetSTL7NM60N

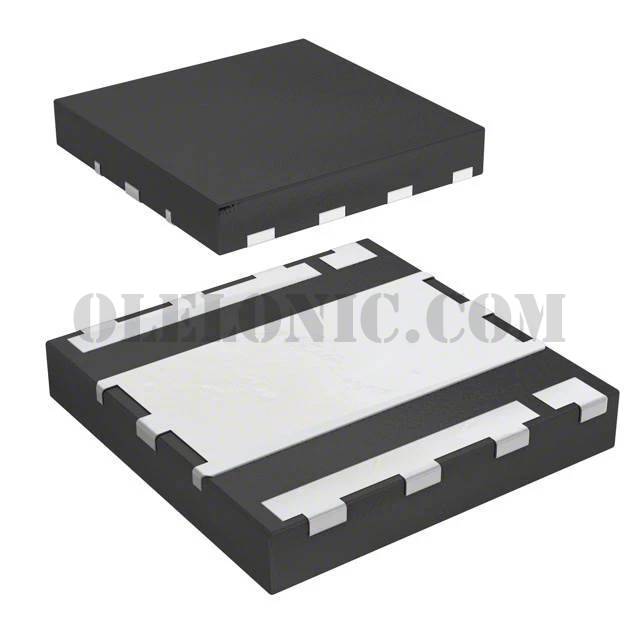

Package / Case14-PowerVQFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 5.8A (Tc) 68W (Tc) Surface Mount 14-PowerFLAT™ (5x5)

To learn about the specification of STL7NM60N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL7NM60N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL7NM60N.
We are offering STL7NM60N for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL7NM60N - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

STL7NM60N

Standard Package

Manufacturer

STMicroelectronics

Series

MDmesh™ II

Packaging

Cut Tape (CT)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

5.8A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

900mOhm @ 2.5A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

14nC @ 10V

Vgs (Max)

±25V

Input Capacitance (Ciss) (Max) @ Vds

363pF @ 50V

FET Feature

Power Dissipation (Max)

68W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

14-PowerFLAT™ (5x5)

Package / Case

14-PowerVQFN
