STL6N3LLH6

STL6N3LLH6

Part NumberSTL6N3LLH6

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 30V PWRFLT2X2

DatasheetSTL6N3LLH6

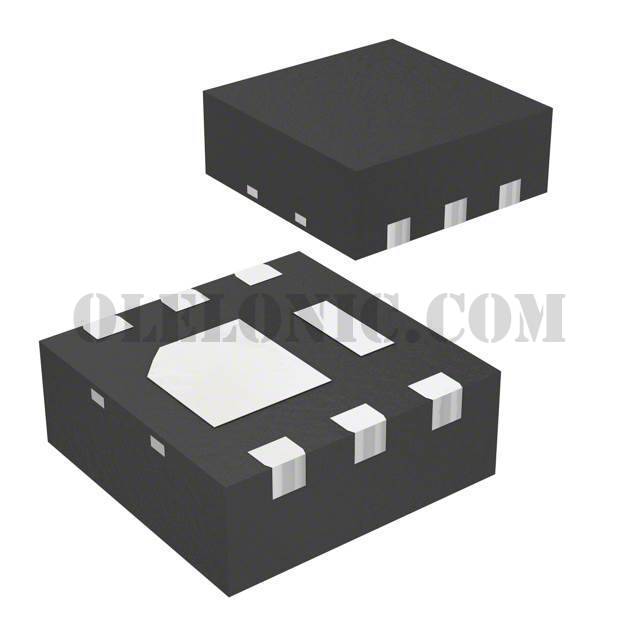

Package / Case6-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 2.4W (Tc) Surface Mount PowerFlat™ (2x2)

To learn about the specification of STL6N3LLH6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL6N3LLH6 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL6N3LLH6.
We are offering STL6N3LLH6 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL6N3LLH6 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL6N3LLH6
Standard Package	3000
Manufacturer	STMicroelectronics
Series	DeepGATE™, STripFET™ VI
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	25mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	3.6nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	283pF @ 24V
FET Feature	-
Power Dissipation (Max)	2.4W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (2x2)
Package / Case	6-PowerWDFN
