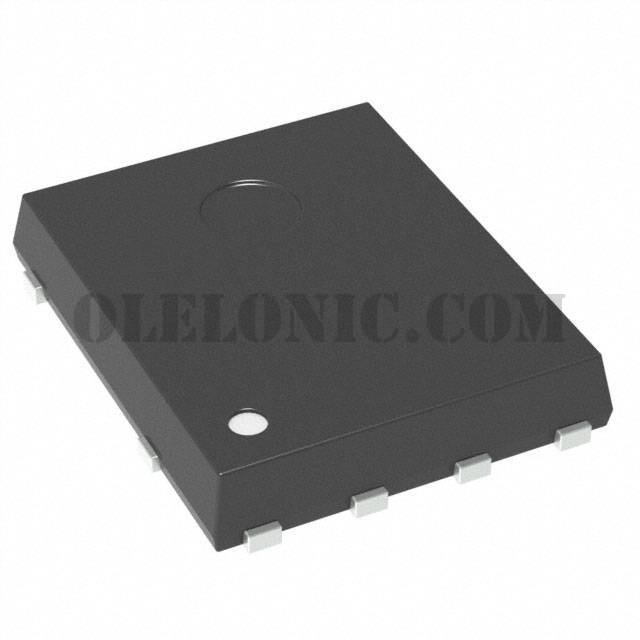

STL4LN80K5

Part NumberSTL4LN80K5

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 800V 3A POWERFLAT

DatasheetSTL4LN80K5

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 800V 3A (Tc) 38W (Tc) Surface Mount PowerFlat™ (5x6) VHV

To learn about the specification of STL4LN80K5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL4LN80K5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL4LN80K5.
We are offering STL4LN80K5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL4LN80K5 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

STL4LN80K5

Standard Package

3000

Manufacturer

STMicroelectronics

Series

MDmesh™ K5

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

800V

Current - Continuous Drain (Id) @ 25°C

3A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

2.6Ohm @ 1.2A, 10V

Vgs(th) (Max) @ Id

5V @ 100µA

Gate Charge (Qg) (Max) @ Vgs

4nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

110pF @ 100V

FET Feature

Power Dissipation (Max)

38W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

PowerFlat™ (5x6) VHV

Package / Case

8-PowerVDFN
