STK820

Part NumberSTK820

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 25V 21A POLARPAK

DatasheetSTK820

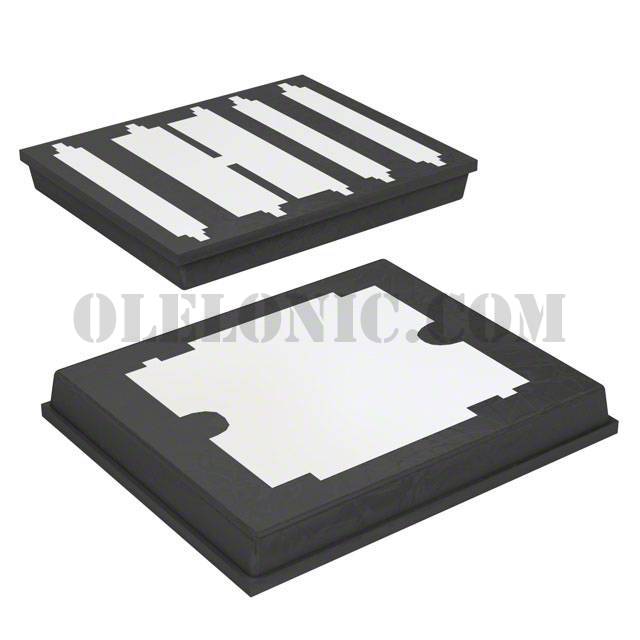

Package / CasePolarPak®

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 25V 21A (Ta) 5.2W (Ta) Surface Mount PolarPak®

To learn about the specification of STK820, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STK820 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STK820.
We are offering STK820 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STK820 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

STK820

Standard Package

3000

Manufacturer

STMicroelectronics

Series

STripFET™

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

25V

Current - Continuous Drain (Id) @ 25°C

21A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

7.3mOhm @ 10.5A, 10V

Vgs(th) (Max) @ Id

2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

9.5nC @ 4.5V

Vgs (Max)

±16V

Input Capacitance (Ciss) (Max) @ Vds

1425pF @ 25V

FET Feature

Power Dissipation (Max)

5.2W (Ta)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

PolarPak®

Package / Case

PolarPak®
