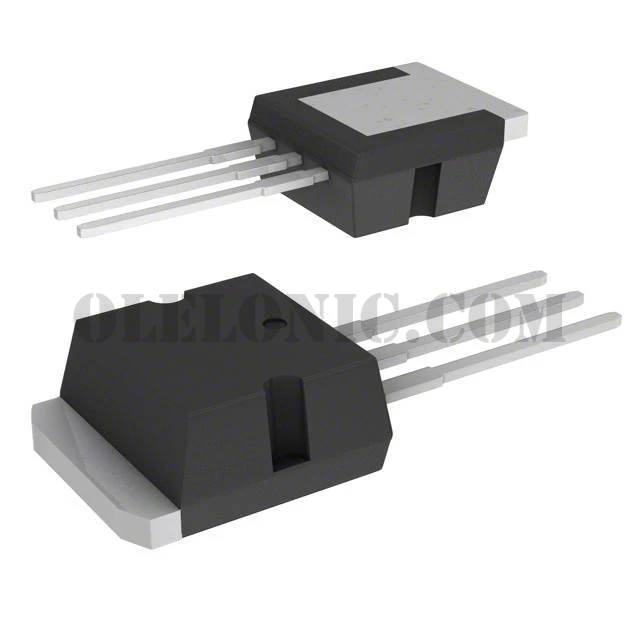

STI270N4F3

STI270N4F3

Part NumberSTI270N4F3

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 40V 120A I2PAK

DatasheetSTx270N4F3

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 160A (Tc) 330W (Tc) Through Hole I2PAK

To learn about the specification of STI270N4F3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STI270N4F3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STI270N4F3.
We are offering STI270N4F3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STI270N4F3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STx270N4F3
Standard Package	50
Manufacturer	STMicroelectronics
Series	Automotive, AEC-Q101, STripFET™ III
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.6mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	150nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7400pF @ 25V
FET Feature	-
Power Dissipation (Max)	330W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAK
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
