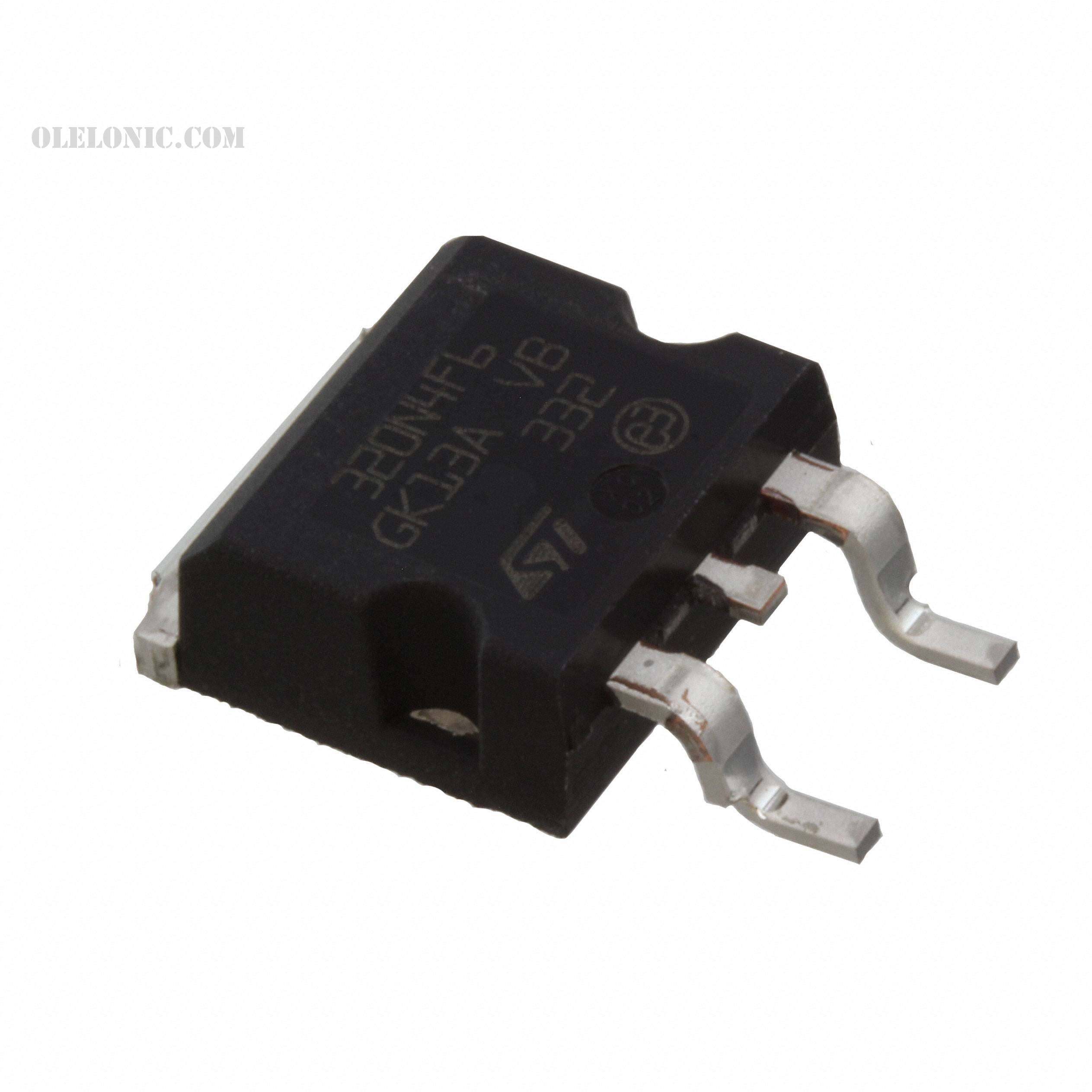

STH320N4F6-2

Part NumberSTH320N4F6-2

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 40V 200A H2PAK-2

DatasheetSTH320N4F6-2,-6

Package / CaseTO-263-3, D²Pak (2 Leads + Tab) Variant

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 200A (Tc) 300W (Tc) Surface Mount H²PAK

To learn about the specification of STH320N4F6-2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STH320N4F6-2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STH320N4F6-2.
We are offering STH320N4F6-2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STH320N4F6-2 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

STH320N4F6-2,-6

Standard Package

1000

Manufacturer

STMicroelectronics

Series

Automotive, AEC-Q101, DeepGATE™, STripFET™ VI

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

40V

Current - Continuous Drain (Id) @ 25°C

200A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

1.3mOhm @ 80A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

240nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

13800pF @ 15V

FET Feature

Power Dissipation (Max)

300W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

H²PAK

Package / Case

TO-263-3, D²Pak (2 Leads + Tab) Variant
