STGWT80H65FB
STGWT80H65FB

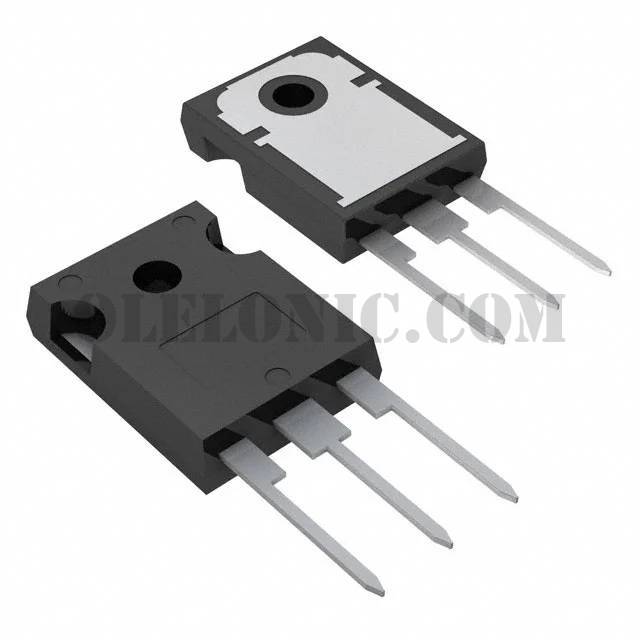

Part Number STGWT80H65FB Description IGBT 650V 120A 469W TO3P-3L Package / Case TO-3P-3, SC-65-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 650V 120A 469W Through Hole TO-3P
To learn about the specification of STGWT80H65FB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGWT80H65FB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGWT80H65FB.
We are offering STGWT80H65FB for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STGWT80H65FB - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet STGW(A,T)80H65FB Standard Package 30 Manufacturer STMicroelectronics Series - Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 120A Current - Collector Pulsed (Icm) 240A Vce(on) (Max) @ Vge, Ic 2V @ 15V, 80A Power - Max 469W Switching Energy 2.1mJ (on), 1.5mJ (off) Input Type Standard Gate Charge 414nC Td (on/off) @ 25°C 84ns/280ns Test Condition 400V, 80A, 10Ohm, 15V Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-3P-3, SC-65-3 Supplier Device Package TO-3P
