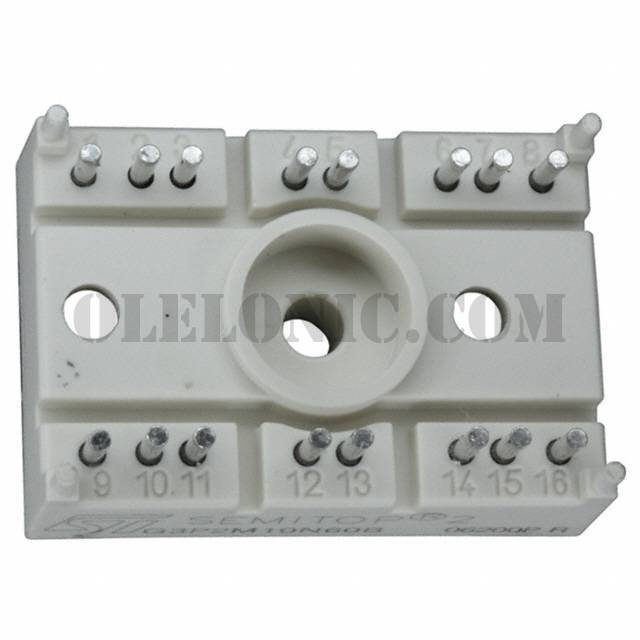

STG3P2M10N60B

Part NumberSTG3P2M10N60B

ManufacturerSTMicroelectronics

DescriptionIGBT N-CHAN 600V 19A SEMITOP2

DatasheetSTG3P2M10N60B

Package / CaseSEMITOP®2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Three Phase Inverter 600V 19A 56W Chassis Mount SEMITOP®2

To learn about the specification of STG3P2M10N60B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STG3P2M10N60B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STG3P2M10N60B.
We are offering STG3P2M10N60B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STG3P2M10N60B - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

STG3P2M10N60B

Standard Package

Manufacturer

STMicroelectronics

Series

SEMITOP®

Part Status

Obsolete

IGBT Type

Configuration

Three Phase Inverter

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

19A

Power - Max

56W

Vce(on) (Max) @ Vge, Ic

2.5V @ 15V, 7A

Current - Collector Cutoff (Max)

10µA

Input Capacitance (Cies) @ Vce

0.72nF @ 25V

Input

Single Phase Bridge Rectifier

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SEMITOP®2

Supplier Device Package

SEMITOP®2
