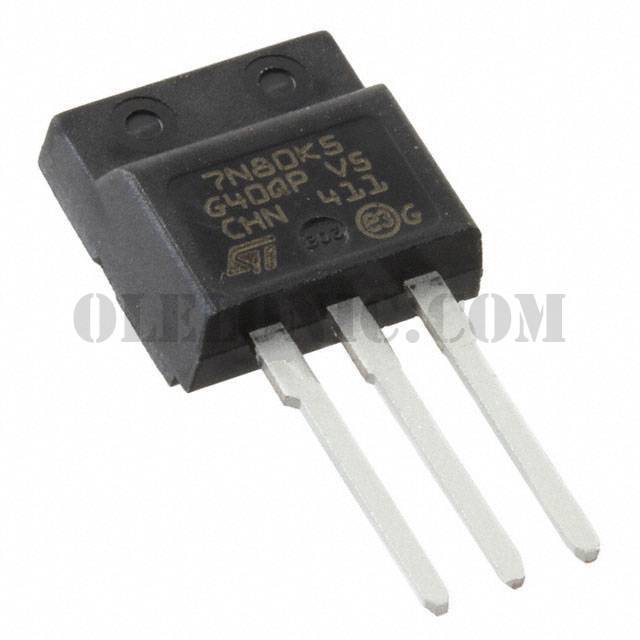

STFI7N80K5

Part NumberSTFI7N80K5

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 800V 6A I2PAK-FP

DatasheetSTF(I)7N80K5

Package / CaseTO-262-3 Full Pack, I²Pak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 800V 6A (Tc) 25W (Tc) Through Hole I2PAKFP (TO-281)

To learn about the specification of STFI7N80K5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STFI7N80K5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STFI7N80K5.
We are offering STFI7N80K5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STFI7N80K5 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

STF(I)7N80K5

Standard Package

Manufacturer

STMicroelectronics

Series

SuperMESH5™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

800V

Current - Continuous Drain (Id) @ 25°C

6A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

1.2Ohm @ 3A, 10V

Vgs(th) (Max) @ Id

5V @ 100µA

Gate Charge (Qg) (Max) @ Vgs

13.4nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

360pF @ 100V

FET Feature

Power Dissipation (Max)

25W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

I2PAKFP (TO-281)

Package / Case

TO-262-3 Full Pack, I²Pak
