Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STx3N80K5
Standard Package	50
Manufacturer	STMicroelectronics
Series	SuperMESH5™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.5Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	9.5nC @ 10V
Vgs (Max)	30V
Input Capacitance (Ciss) (Max) @ Vds	130pF @ 100V
FET Feature	-
Power Dissipation (Max)	20W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole

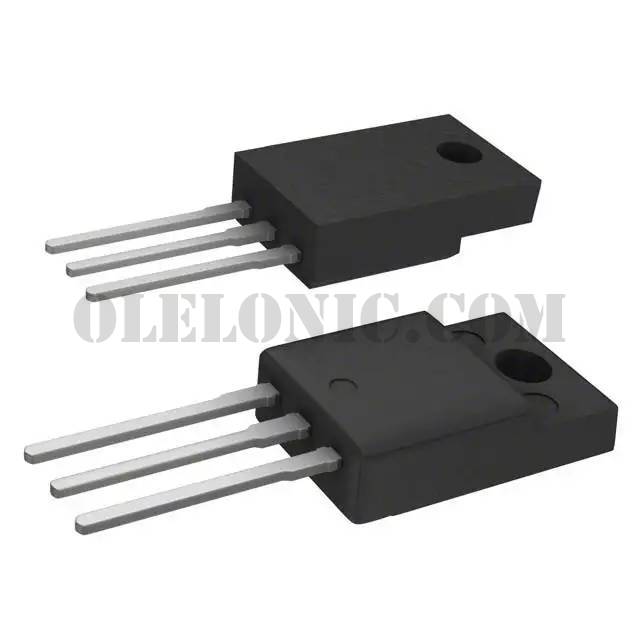

Supplier Device Package	TO-220FP
Package / Case	TO-220-3 Full Pack
