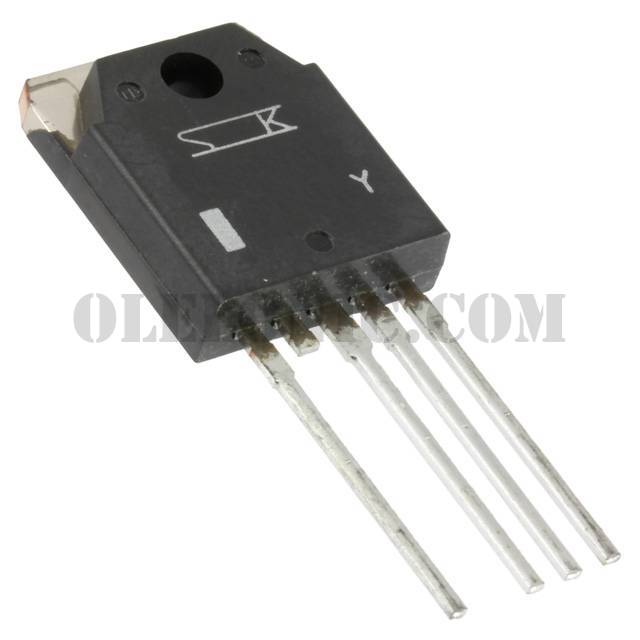

STD03P

STD03P

Part NumberSTD03P

ManufacturerSanken

DescriptionTRANS PNP DARL 160V 15A TO-3P-5

DatasheetSTD03P

Package / CaseTO-3P-5

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 160V 15A 160W Through Hole TO-3P-5L

To learn about the specification of STD03P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STD03P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STD03P.
We are offering STD03P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STD03P - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	STD03P
Standard Package	30
Manufacturer	Sanken
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	PNP - Darlington
Current - Collector (Ic) (Max)	15A
Voltage - Collector Emitter Breakdown (Max)	160V
Vce Saturation (Max) @ Ib, Ic	2V @ 10mA, 10A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	5000 @ 10A, 4V
Power - Max	160W
Frequency - Transition	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-5
Supplier Device Package	TO-3P-5L
