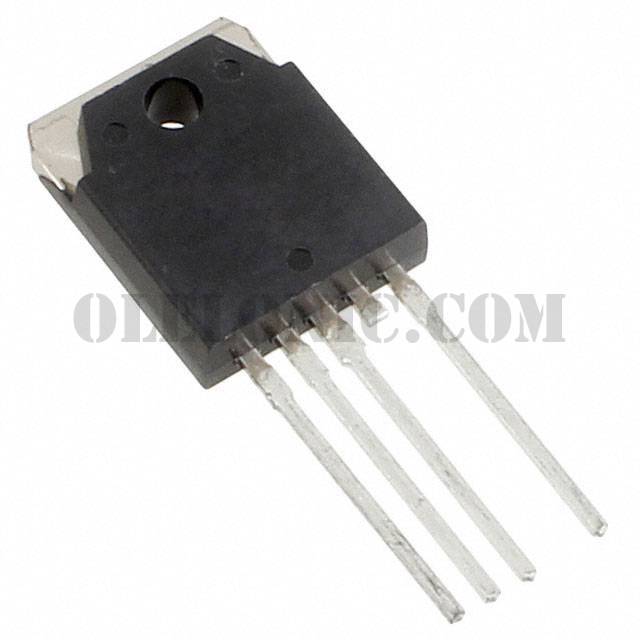

STD03N

STD03N

Part NumberSTD03N

ManufacturerSanken

DescriptionTRANS NPN DARL 160V 15A TO-3P-5

DatasheetSTD03N

Package / CaseTO-3P-5

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN - Darlington 160V 15A 160W Through Hole TO-3P-5L

To learn about the specification of STD03N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STD03N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STD03N.
We are offering STD03N for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STD03N - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	STD03N
Standard Package	30
Manufacturer	Sanken
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN - Darlington
Current - Collector (Ic) (Max)	15A
Voltage - Collector Emitter Breakdown (Max)	160V
Vce Saturation (Max) @ Ib, Ic	2V @ 10mA, 10A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	5000 @ 10A, 4V
Power - Max	160W
Frequency - Transition	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-5
Supplier Device Package	TO-3P-5L
