STB45NF06T4

STB45NF06T4

Part NumberSTB45NF06T4

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 60V 38A D2PAK

DatasheetSTB45NF06

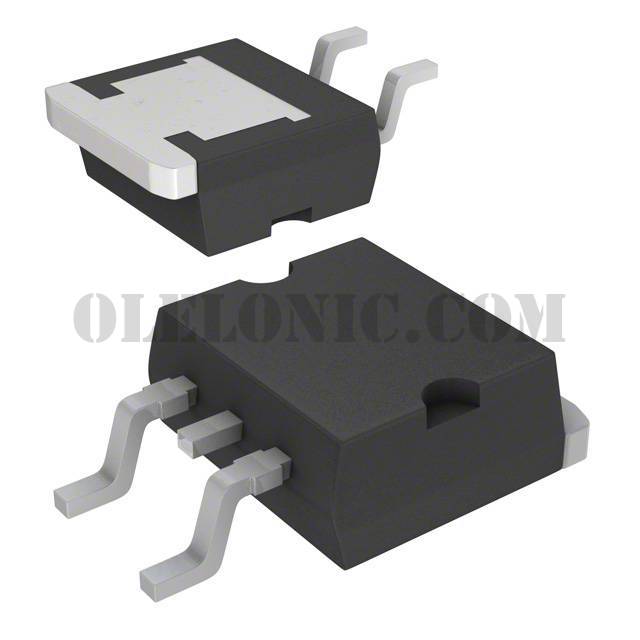

Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 38A (Tc) 80W (Tc) Surface Mount D2PAK

To learn about the specification of STB45NF06T4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STB45NF06T4 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STB45NF06T4.
We are offering STB45NF06T4 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STB45NF06T4 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STB45NF06
Standard Package	1000
Manufacturer	STMicroelectronics
Series	STripFET™ II
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	28mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	58nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	980pF @ 25V
FET Feature	-
Power Dissipation (Max)	80W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
