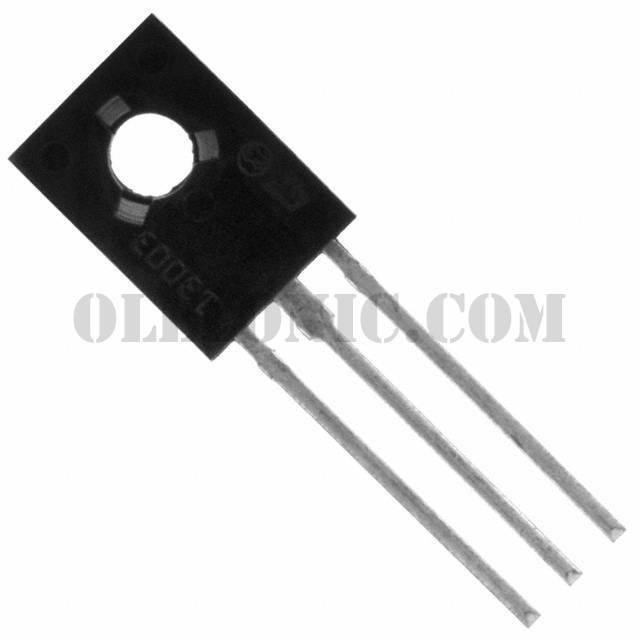

ST13003-K

ST13003-K

Part NumberST13003-K

ManufacturerSTMicroelectronics

DescriptionTRANS NPN 400V 1.5A SOT-32

DatasheetST13003(-K)

Package / CaseTO-225AA, TO-126-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 400V 1.5A 40W Through Hole SOT-32-3

To learn about the specification of ST13003-K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ST13003-K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ST13003-K.
We are offering ST13003-K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ST13003-K - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	ST13003(-K)
Standard Package	500
Manufacturer	STMicroelectronics
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1.5A
Voltage - Collector Emitter Breakdown (Max)	400V
Vce Saturation (Max) @ Ib, Ic	1.5V @ 500mA, 1.5A
Current - Collector Cutoff (Max)	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce	5 @ 1A, 2V
Power - Max	40W
Frequency - Transition	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-225AA, TO-126-3
Supplier Device Package	SOT-32-3
Base Part Number	ST13003
