Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM6K341NU
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVIII-H
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	36mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	9.3nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	550pF @ 10V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount

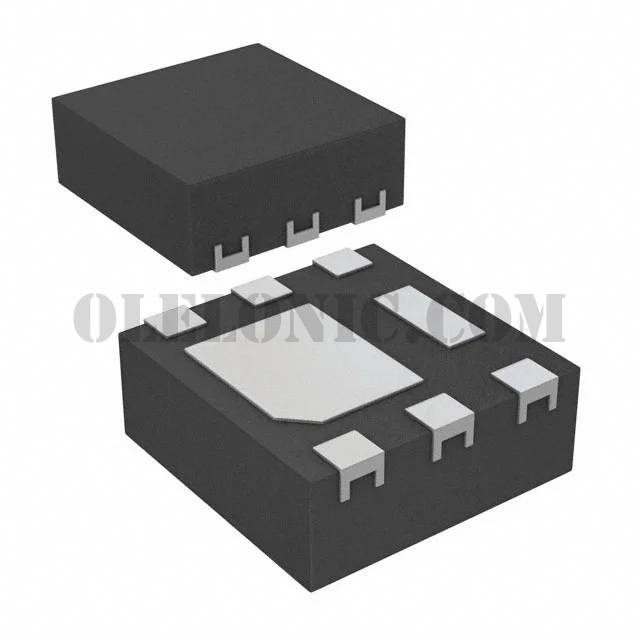

Supplier Device Package	6-UDFNB (2x2)
Package / Case	6-WDFN Exposed Pad
