SSM5N15FU,LF

Part NumberSSM5N15FU,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 30V 0.1A USV

DatasheetSSM5N15FU

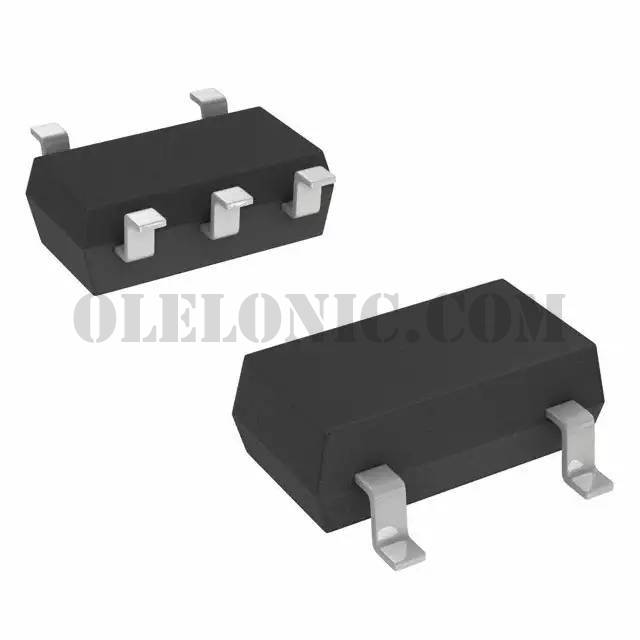

Package / Case5-TSSOP, SC-70-5, SOT-353

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 100mA (Ta) 200mW (Ta) Surface Mount USV

To learn about the specification of SSM5N15FU,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM5N15FU,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM5N15FU,LF.
We are offering SSM5N15FU,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM5N15FU,LF - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

SSM5N15FU

Standard Package

3000

Manufacturer

Toshiba Semiconductor and Storage

Series

π-MOSVI

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

100mA (Ta)

Drive Voltage (Max Rds On, Min Rds On)

2.5V, 4V

Rds On (Max) @ Id, Vgs

4Ohm @ 10mA, 4V

Vgs(th) (Max) @ Id

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

7.8pF @ 3V

FET Feature

Power Dissipation (Max)

200mW (Ta)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

USV

Package / Case

5-TSSOP, SC-70-5, SOT-353
