SSM3K15AFU,LF

SSM3K15AFU,LF

Part NumberSSM3K15AFU,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 30V 0.1A SSM

DatasheetSSM3K15AFU

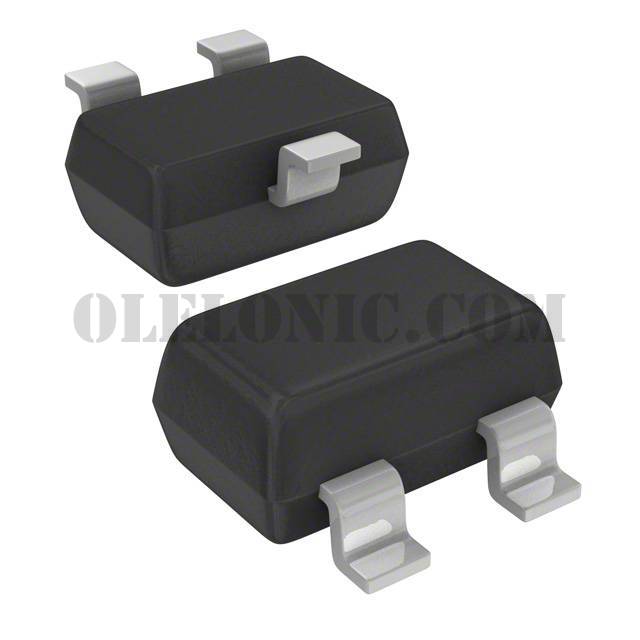

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 100mA (Ta) 150mW (Ta) Surface Mount USM

To learn about the specification of SSM3K15AFU,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3K15AFU,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3K15AFU,LF.
We are offering SSM3K15AFU,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3K15AFU,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM3K15AFU
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSIII
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4V
Rds On (Max) @ Id, Vgs	3.6Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id	1.5V @ 100µA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	13.5pF @ 3V
FET Feature	-
Power Dissipation (Max)	150mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	USM
Package / Case	SC-70, SOT-323
