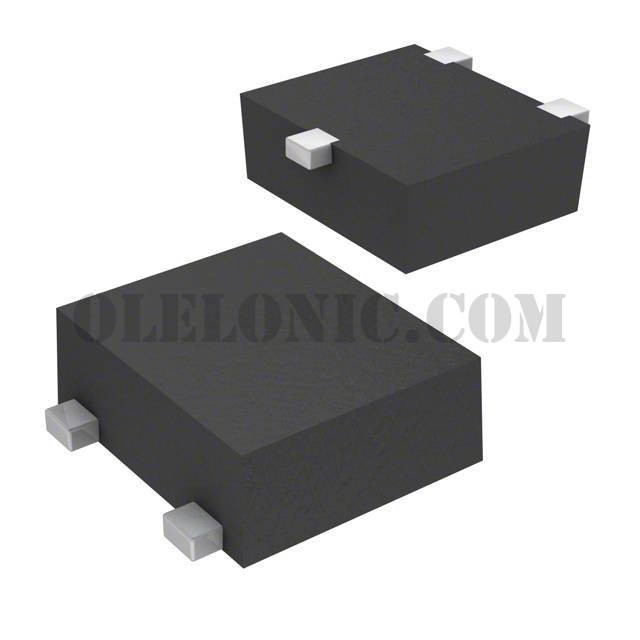

SSM3J140TU,LF

SSM3J140TU,LF

Part NumberSSM3J140TU,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionSMALL SIGNAL MOSFET P-CH VDSS:-2

DatasheetSSM3J140TU Datasheet

Package / Case3-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 4.4A (Ta) 500mW (Ta) Surface Mount UFM

To learn about the specification of SSM3J140TU,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3J140TU,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3J140TU,LF.
We are offering SSM3J140TU,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3J140TU,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM3J140TU Datasheet
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVI
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	25.8mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	24.8nC @ 4.5V
Vgs (Max)	+6V, -8V
Input Capacitance (Ciss) (Max) @ Vds	1800pF @ 10V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	UFM
Package / Case	3-SMD, Flat Leads
