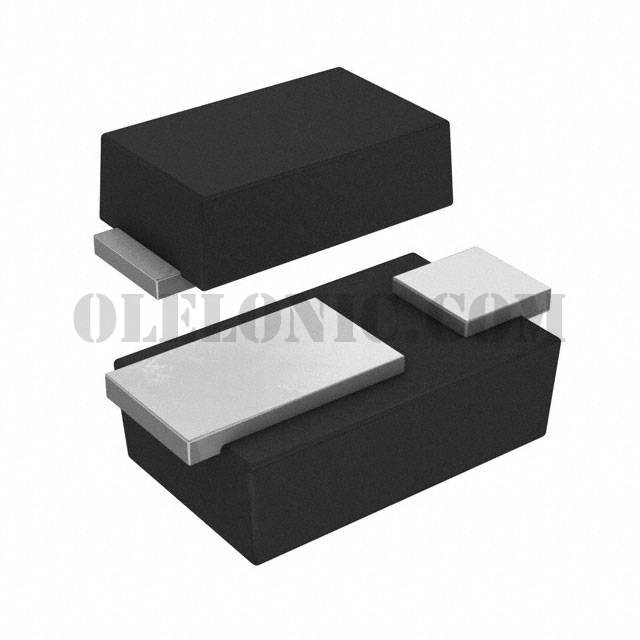

SS14HE

SS14HE

Part NumberSS14HE

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 40V 1A SOD323HE

DatasheetSS13HE, NRVBSS13HE

Package / Case2-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 1A Surface Mount SOD-323HE

To learn about the specification of SS14HE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SS14HE with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SS14HE.
We are offering SS14HE for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SS14HE - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SS13HE, NRVBSS13HE
Standard Package	3000
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	550mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	5.6ns
Current - Reverse Leakage @ Vr	50µA @ 40V
Capacitance @ Vr, F	55pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-SMD, Flat Lead
Supplier Device Package	SOD-323HE
Operating Temperature - Junction	-55°C ~ 150°C
