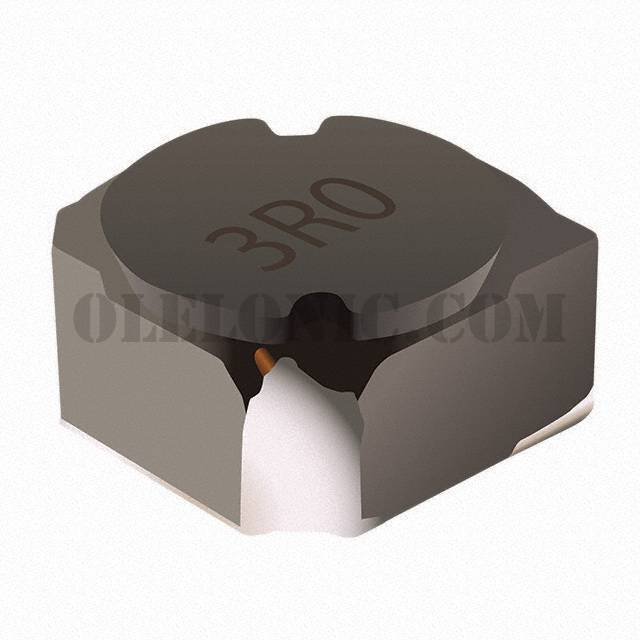

SRR6040A-101M


SRR6040A-101M

Part NumberSRR6040A-101M

Manufacturer

Description

Datasheet

Package / CaseNonstandard, Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SRR6040A-101M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerBourns Inc.
SeriesSRR6040A
PackagingCut Tape (CT)
Part StatusActive
Type-
Material - CoreFerrite
Inductance100µH
Tolerance±20%
Current Rating (Amps)650mA
Current - Saturation570mA
ShieldingShielded
DC Resistance (DCR)345mOhm Max
Q @ Freq-
Frequency - Self Resonant-
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test10kHz
Mounting TypeSurface Mount
Package / CaseNonstandard, Corner Terminals
Supplier Device Package-
Size / Dimension0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max)0.157" (4.00mm)
Base Part NumberSRR6040A
