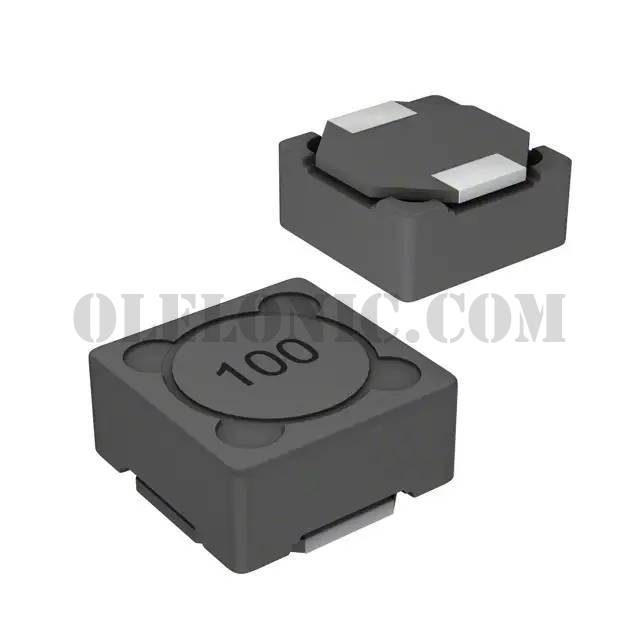

SRR1260-101M


SRR1260-101M

Part NumberSRR1260-101M

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SRR1260-101M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerBourns Inc.
SeriesSRR1260
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance100µH
Tolerance±20%
Current Rating (Amps)1.7A
Current - Saturation1.7A
ShieldingShielded
DC Resistance (DCR)180mOhm Max
Q @ Freq26 @ 796kHz
Frequency - Self Resonant6.07MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)0.256" (6.50mm)
Base Part NumberSRR1260
