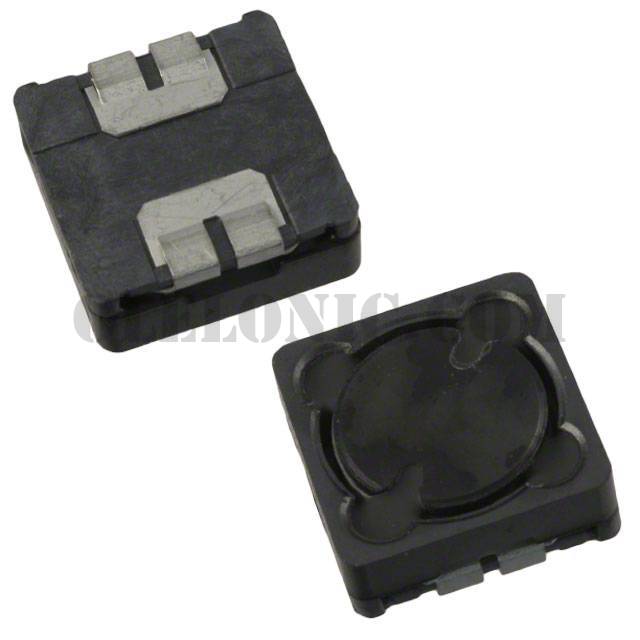

SRR1205-150ML


SRR1205-150ML

Part NumberSRR1205-150ML

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SRR1205-150ML - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerBourns Inc.
SeriesSRR1205
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance15µH
Tolerance±20%
Current Rating (Amps)2.7A
Current - Saturation5.3A
ShieldingShielded
DC Resistance (DCR)70mOhm Max
Q @ Freq20 @ 2.52MHz
Frequency - Self Resonant11MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max)0.217" (5.50mm)
Base Part NumberSRR1205
