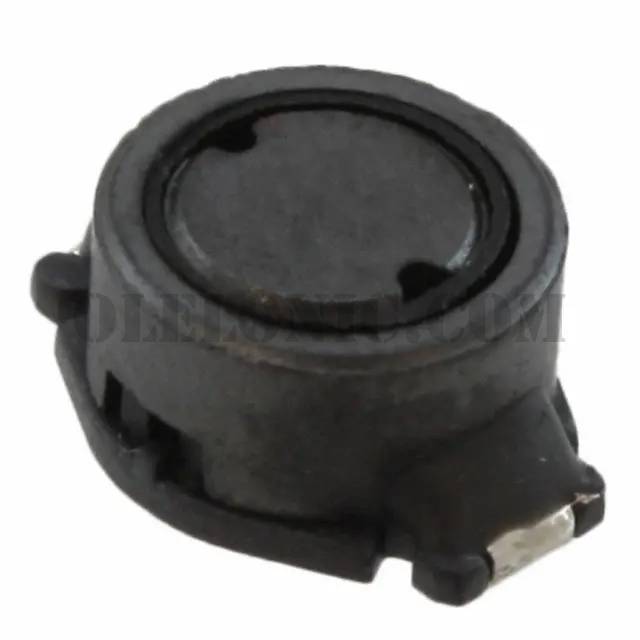

SRR0805-8R2M


SRR0805-8R2M

Part NumberSRR0805-8R2M

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SRR0805-8R2M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1000
ManufacturerBourns Inc.
SeriesSRR0805
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance8.2µH
Tolerance±20%
Current Rating (Amps)1.75A
Current - Saturation2.5A
ShieldingShielded
DC Resistance (DCR)80mOhm Max
Q @ Freq19 @ 7.96MHz
Frequency - Self Resonant32MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max)0.185" (4.70mm)
Base Part NumberSRR0805
