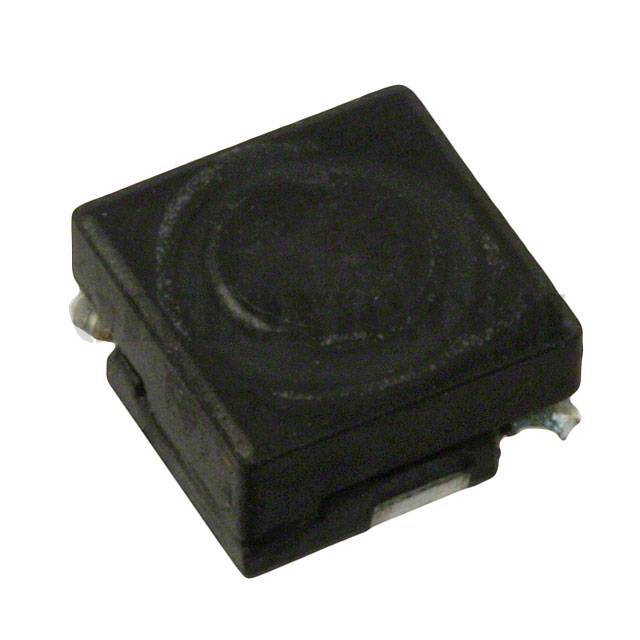

SRR0603-100ML


SRR0603-100ML

Part NumberSRR0603-100ML

Manufacturer

Description

Datasheet

Package / CaseNonstandard, Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SRR0603-100ML - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerBourns Inc.
SeriesSRR0603
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance10µH
Tolerance±20%
Current Rating (Amps)1.1A
Current - Saturation1.5A
ShieldingShielded
DC Resistance (DCR)120mOhm Max
Q @ Freq16 @ 2.52MHz
Frequency - Self Resonant25MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard, Corner Terminals
Supplier Device Package-
Size / Dimension0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max)0.130" (3.30mm)
Base Part NumberSRR0603
