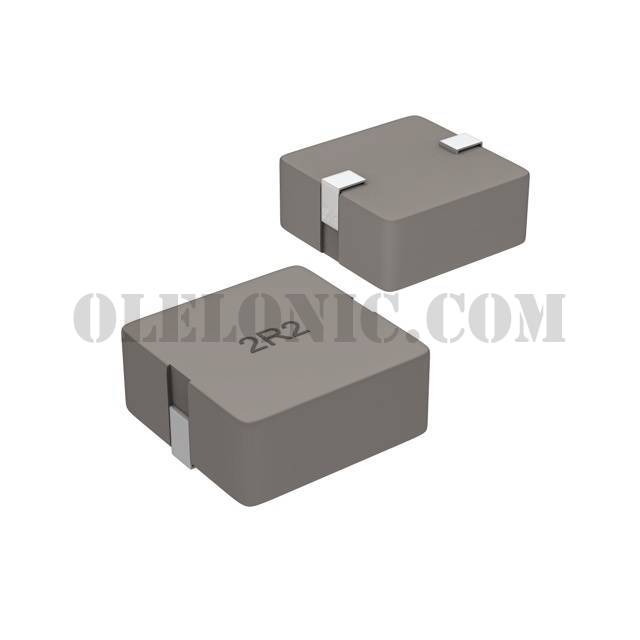

SRP4020-R56M

Part NumberSRP4020-R56M

ManufacturerBourns Inc.

DescriptionFIXED IND 560NH 7A 14.7 MOHM SMD

DatasheetSRP4020 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560nH Shielded Molded Inductor 7A 14.7mOhm Max Nonstandard

To learn about the specification of SRP4020-R56M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRP4020-R56M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRP4020-R56M.
We are offering SRP4020-R56M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SRP4020-R56M - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SRP4020 Series

Standard Package

2000

Manufacturer

Bourns Inc.

Series

SRP4020

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Molded

Material - Core

Iron

Inductance

560nH

Tolerance

±20%

Current Rating (Amps)

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

14.7mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.189" L x 0.157" W (4.80mm x 4.00mm)

Height - Seated (Max)

0.079" (2.00mm)

Base Part Number
