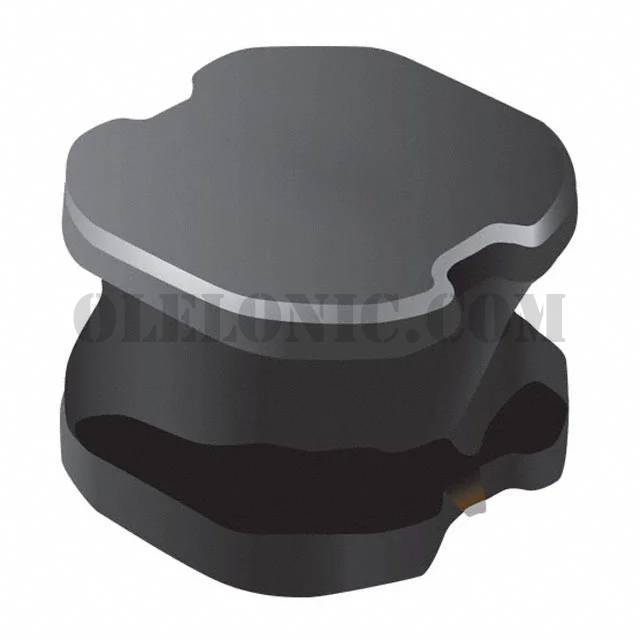

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SRN6045 Series
Standard Package	1
Manufacturer	Bourns Inc.
Series	SRN6045
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	220µH
Tolerance	±20%
Current Rating (Amps)	600mA
Current - Saturation	700mA
Shielding	Semi-Shielded
DC Resistance (DCR)	1.18Ohm Max
Q @ Freq	25 @ 796kHz
Frequency - Self Resonant	4MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)	0.177" (4.50mm)
Base Part Number	SRN6045
