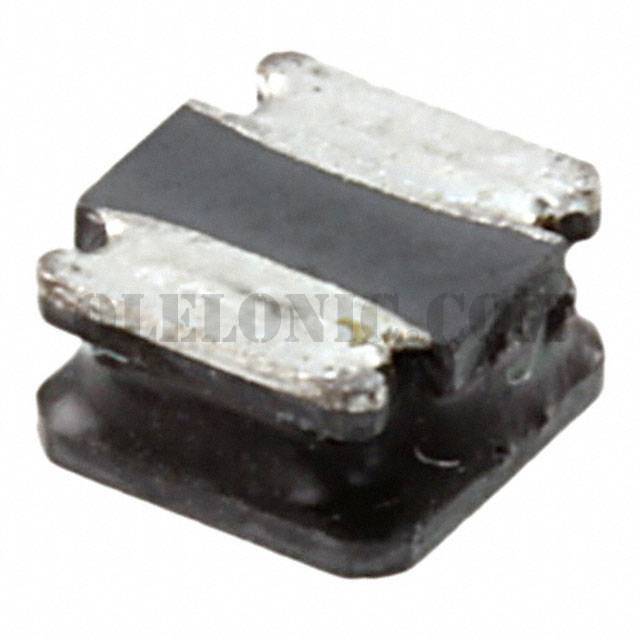

SRN4026-220M
SRN4026-220M
Part Number SRN4026-220M
Description FIXED IND 22UH 670MA 234 MOHM
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 22µH Semi-Shielded Wirewound Inductor 670mA 234mOhm Max Nonstandard
To learn about the specification of SRN4026-220M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRN4026-220M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRN4026-220M.
We are offering SRN4026-220M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SRN4026-220M - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SRN4026 Series
Standard Package 3000
Manufacturer Bourns Inc.
Series SRN4026
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22µH
Tolerance ±20%
Current Rating (Amps) 670mA
Current - Saturation 670mA
Shielding Semi-Shielded
DC Resistance (DCR) 234mOhm Max
Q @ Freq 11 @ 2.52MHz
Frequency - Self Resonant 16MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.098" (2.50mm)
Base Part Number SRN4026
