SRN3015-6R8M
SRN3015-6R8M

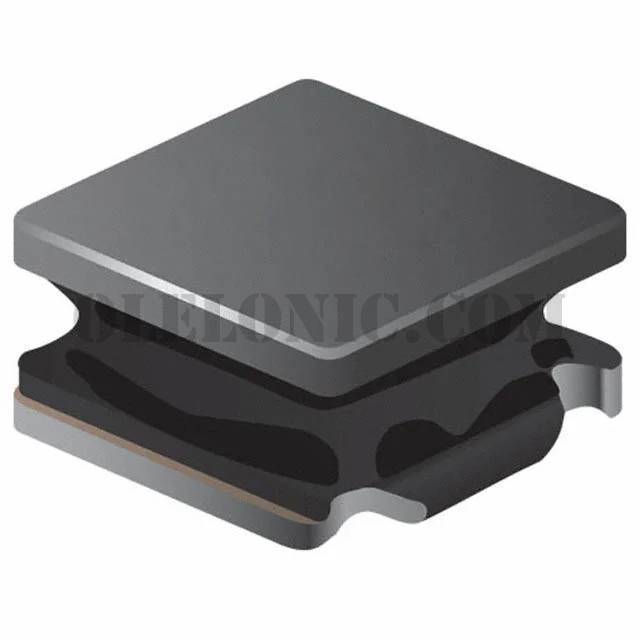

Part Number SRN3015-6R8M Description FIXED IND 6.8UH 1.1A 211 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 6.8µH Semi-Shielded Wirewound Inductor 1.1A 211mOhm Max Nonstandard
To learn about the specification of SRN3015-6R8M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRN3015-6R8M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRN3015-6R8M.
We are offering SRN3015-6R8M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SRN3015-6R8M - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SRN3015 Series Standard Package 1 Manufacturer Bourns Inc. Series SRN3015 Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core Ferrite Inductance 6.8µH Tolerance ±20% Current Rating (Amps) 1.1A Current - Saturation 1.05A Shielding Semi-Shielded DC Resistance (DCR) 211mOhm Max Q @ Freq 10 @ 7.96MHz Frequency - Self Resonant 50MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 1MHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm) Height - Seated (Max) 0.059" (1.50mm) Base Part Number SRN3015
