SRN3010-2R2M
SRN3010-2R2M

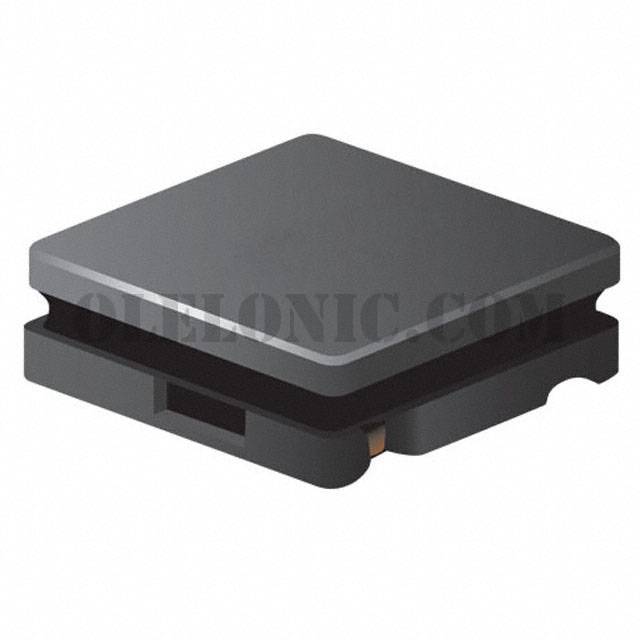

Part Number SRN3010-2R2M Description FIXED IND 2.2UH 1.9A 96 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.2µH Semi-Shielded Wirewound Inductor 1.9A 96mOhm Max Nonstandard
To learn about the specification of SRN3010-2R2M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRN3010-2R2M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRN3010-2R2M.
We are offering SRN3010-2R2M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SRN3010-2R2M - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SRN3010 Series Standard Package 1 Manufacturer Bourns Inc. Series SRN3010 Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core Ferrite Inductance 2.2µH Tolerance ±20% Current Rating (Amps) 1.9A Current - Saturation 1.3A Shielding Semi-Shielded DC Resistance (DCR) 96mOhm Max Q @ Freq 7 @ 7.96MHz Frequency - Self Resonant 85MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm) Height - Seated (Max) 0.039" (1.00mm) Base Part Number SRN3010
