SRN2010TA-6R8M
SRN2010TA-6R8M

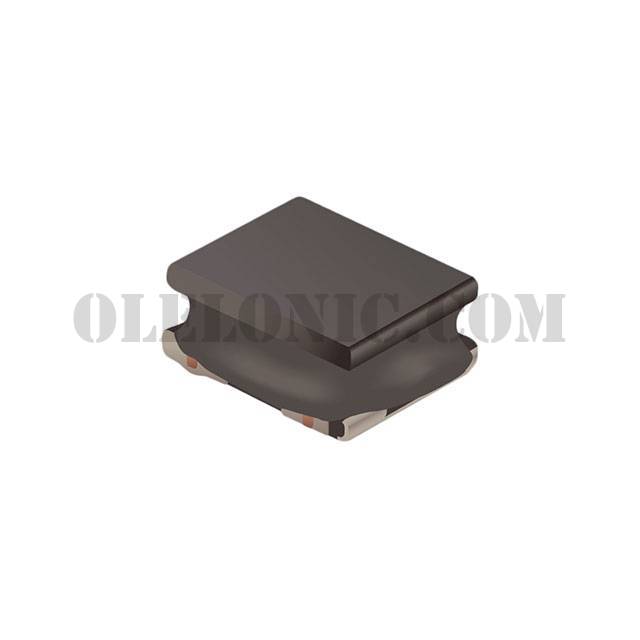

Part Number SRN2010TA-6R8M Description FIXED IND 6.8UH 550MA 500 MOHM Package / Case 0806 (2016 Metric)Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description 6.8µH Semi-Shielded Wirewound Inductor 550mA 500mOhm 0806 (2016 Metric)
To learn about the specification of SRN2010TA-6R8M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRN2010TA-6R8M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRN2010TA-6R8M.
We are offering SRN2010TA-6R8M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SRN2010TA-6R8M - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SRN2010TA Series Standard Package 2000 Manufacturer Bourns Inc. Series SRN2010TA Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Ferrite Inductance 6.8µH Tolerance ±20% Current Rating (Amps) 550mA Current - Saturation 720mA Shielding Semi-Shielded DC Resistance (DCR) 500mOhm Q @ Freq 14 @ 1MHz Frequency - Self Resonant 52MHz Ratings AEC-Q200 Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 1MHz Mounting Type Surface Mount Package / Case 0806 (2016 Metric) Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm) Height - Seated (Max) 0.039" (1.00mm) Base Part Number SRN2010TA
