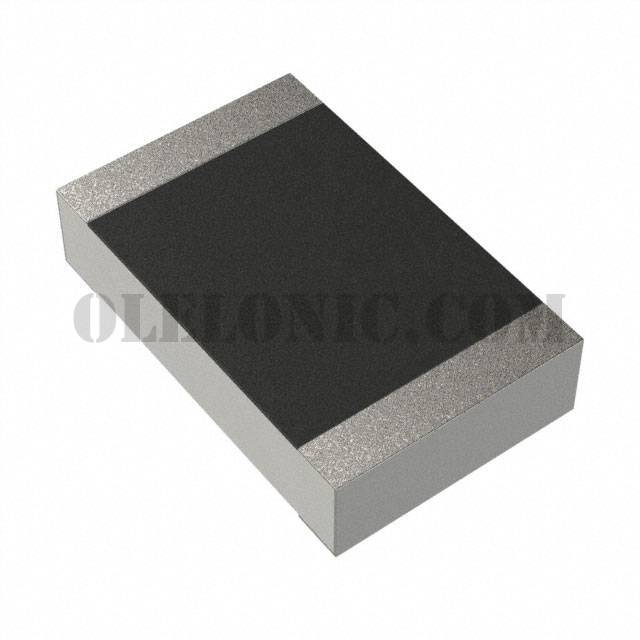

SR0805JR-7T15RL

Part NumberSR0805JR-7T15RL

ManufacturerYageo

DescriptionSURGE CHIP RESISTOR 0805 5% 1/3W

DatasheetSR Series, J,K,M

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description15 Ohms ±5% 0.333W, 1/3W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film

To learn about the specification of SR0805JR-7T15RL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SR0805JR-7T15RL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SR0805JR-7T15RL.
We are offering SR0805JR-7T15RL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SR0805JR-7T15RL - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	SR Series, J,K,M
Standard Package	1
Manufacturer	Yageo
Series	SR
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	15 Ohms
Tolerance	±5%
Power (Watts)	0.333W, 1/3W
Composition	Thick Film
Features	Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.024" (0.60mm)
Number of Terminations	2
