SQJA68EP-T1_GE3

SQJA68EP-T1_GE3

Part NumberSQJA68EP-T1_GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 100V 14A POWERPAKSO

DatasheetSQJA68EP

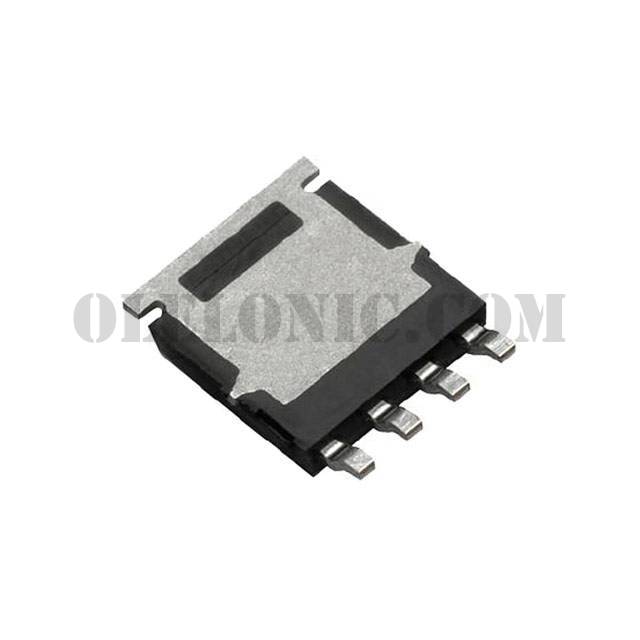

Package / CasePowerPAK® SO-8

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 14A (Tc) 45W (Tc) Surface Mount PowerPAK® SO-8

To learn about the specification of SQJA68EP-T1_GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SQJA68EP-T1_GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SQJA68EP-T1_GE3.
We are offering SQJA68EP-T1_GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SQJA68EP-T1_GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SQJA68EP
Standard Package	1
Manufacturer	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	92mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	280pF @ 25V
FET Feature	-
Power Dissipation (Max)	45W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
