SQJ560EP-T1_GE3

Part NumberSQJ560EP-T1_GE3

ManufacturerVishay Siliconix

DescriptionMOSFET DUAL N P CH 60V PPAK SO-8

DatasheetSQJ560EP

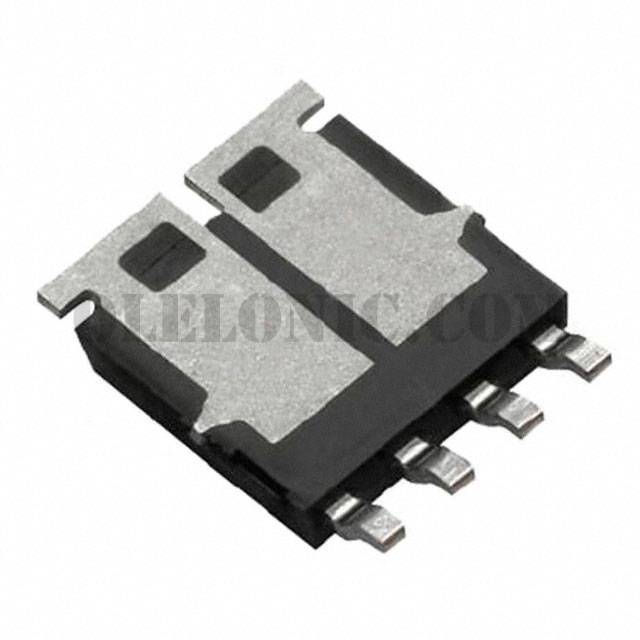

Package / CasePowerPAK® SO-8 Dual

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 60V 30A (Tc), 18A (Tc) 34W (Tc) Surface Mount PowerPAK® SO-8 Dual

To learn about the specification of SQJ560EP-T1_GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SQJ560EP-T1_GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SQJ560EP-T1_GE3.
We are offering SQJ560EP-T1_GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SQJ560EP-T1_GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SQJ560EP
Standard Package	1
Manufacturer	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	30A (Tc), 18A (Tc)
Rds On (Max) @ Id, Vgs	12mOhm @ 10A, 10V, 52.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30nC @ 10V, 45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1650pF @ 25V
Power - Max	34W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual
